OVERVIEW

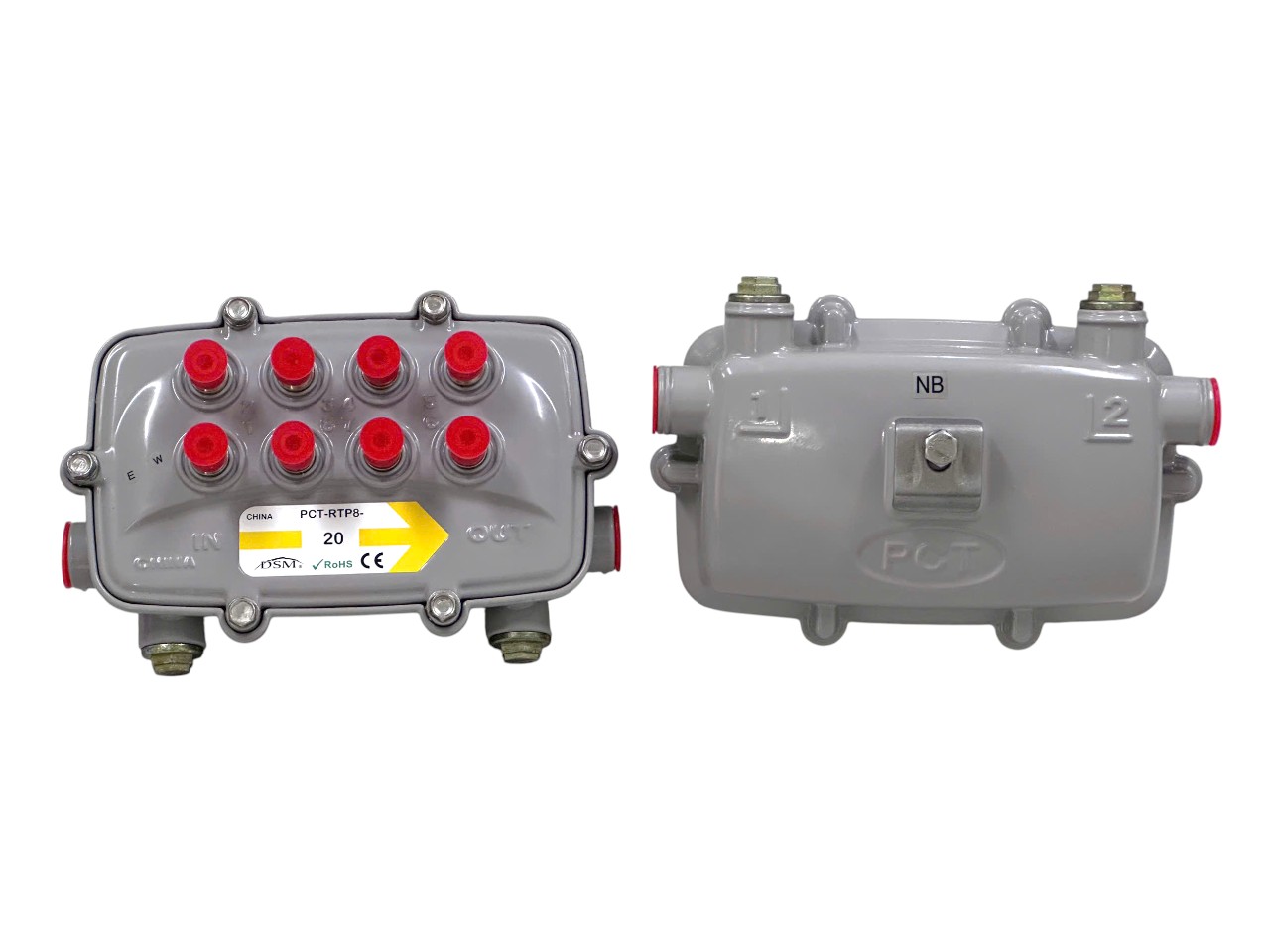

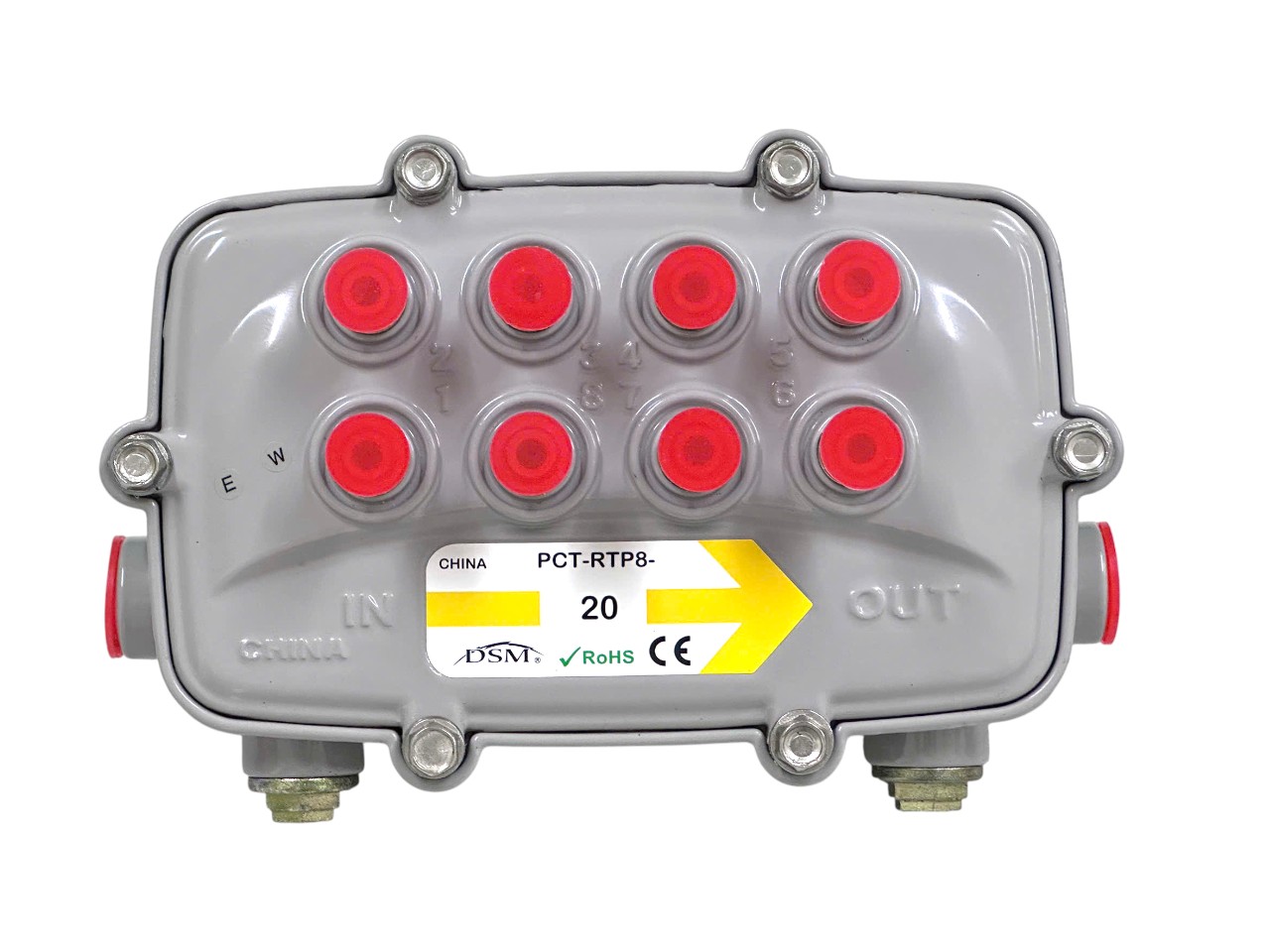

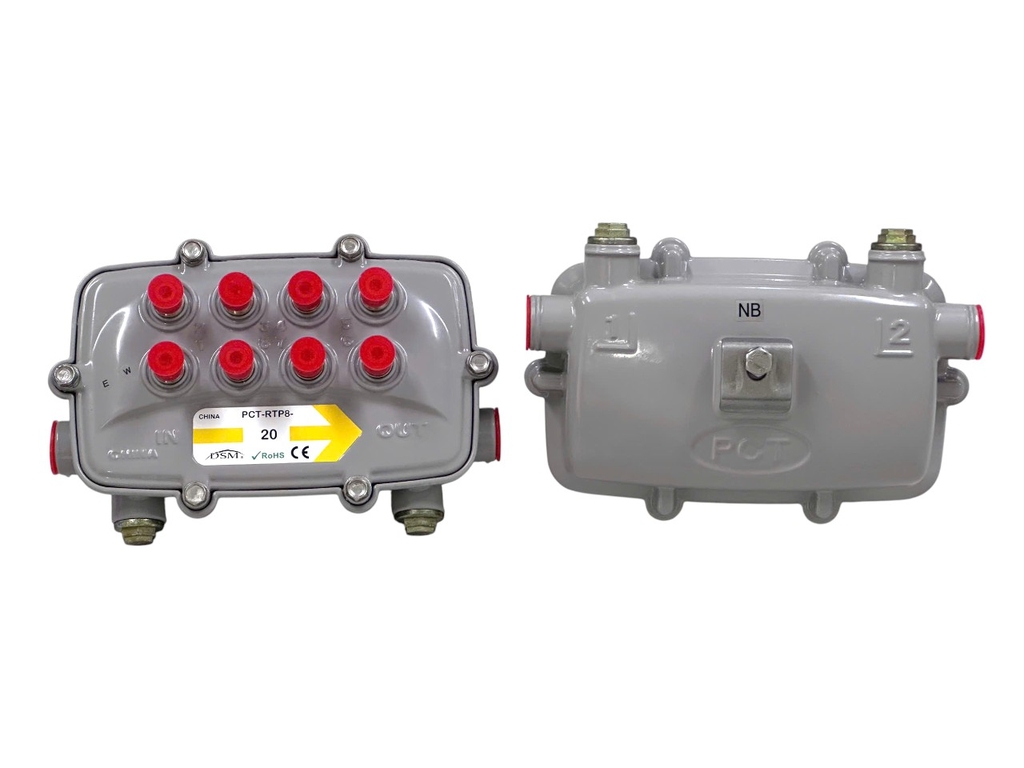

Repositioning nodes and amplifiers changes the direction of signal flow, requiring taps to be respliced. PCT’s RTPA series reversible faceplate multitaps provide a unique solution to the problem of having to resplice taps as fiber is pushed deeper into the network. The added feature of signal level conditioning ensures proper signal levels for DOCSIS 3.1 performance.
SPECIFICATIONS
- Symmetrical design to allow reversibility without resplicing the housing.
- DOCSIS 3.1 ready with extended bandwidth and signal level conditioning to interact with both standard and higher output nodes.
- 1.2 GHz bandwidth with minimal insertion loss.
- 110 dB shielding effectiveness (RFI).
- Uninterrupted power passing design.
- Patented DSM seizure technology on F ports provides increased spring retention for better surface contact and electrical performance (patent #6450836).
- Aluminum alloy housing with weather resistant powder coating.
- Weatherproof, self-sealing F ports prevent breathing through ports when subscriber is disconnected.
- Bright acid tin-plated, brass F ports offer increased strength and protection against corrosion in severe environmental conditions.
- Color coded tap values.
- Surge protection at all ports for greater system reliability.
- Conforms to all applicable SCTE standards.
