CONEX-TCA-305

Status: Out of stock | SKU:
Contact

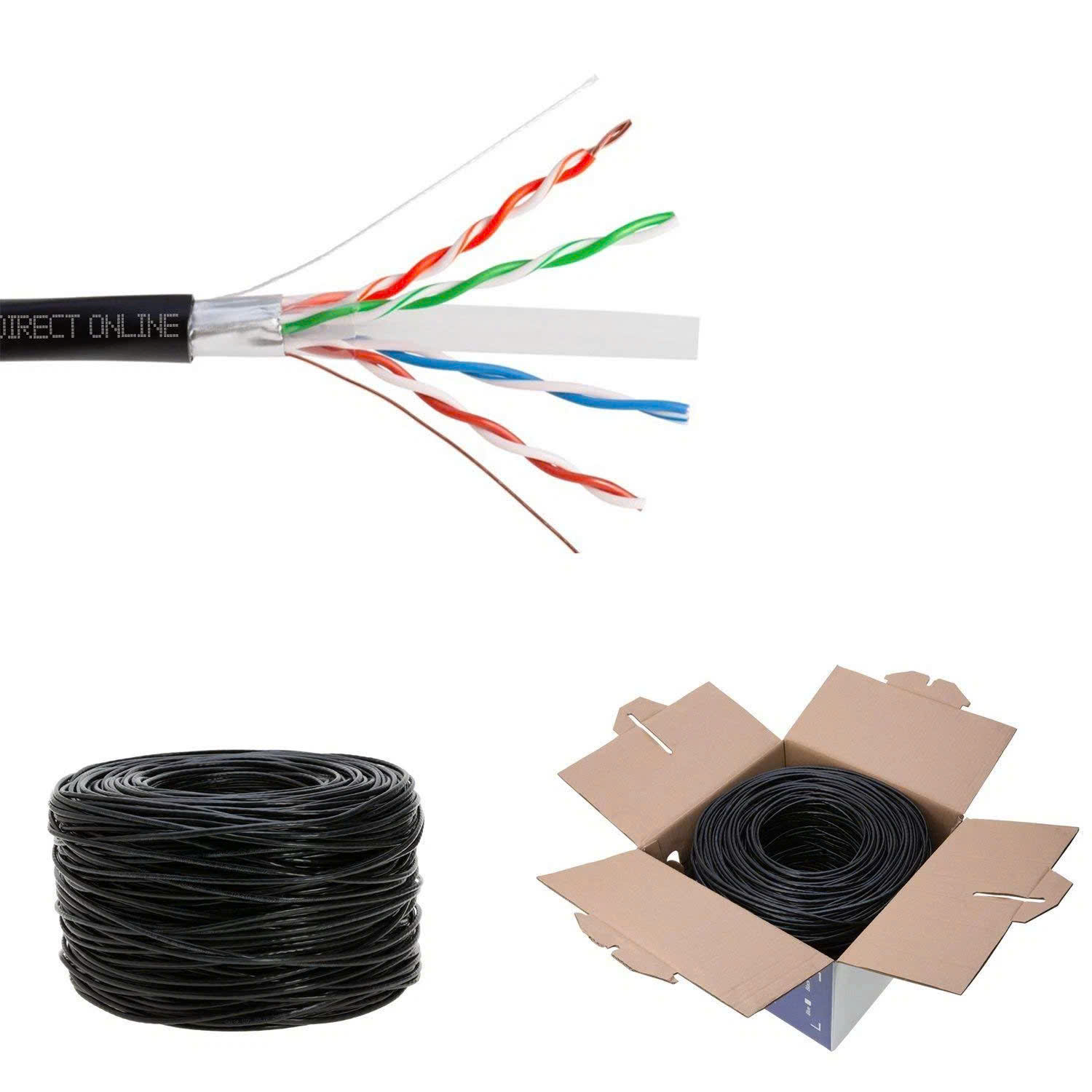

CAT6, PATCH CABLE, MAX 10GBASET, 305M, PVC JACKET

  • Description

    OVERVIEW

    SPECIFICATIONS

    Feature Details
    Jacket Material PVC
    Jacket Color Gray, White, Blue, Black
    Copper Purity 99% pure
    Wire Count 4 Pair
    Connector (bayonet type) 8P8C – RJ45 with molded boot
    Connector Molded
    		 Yes
    1 White / Blue Stripe & Blue
    2 White / Orange Stripe & Orange
    3 White / Green Stripe & Green
    4 White / Brown Stripe & Brown
    Conductor Diameter
    		 7 x 0.203 mm stranded UTP min
    Jacket Print

    CONEX CAT6 VERIFIED TO TIA/EIA‐568‐C.2 EXXXXXX (UL OR ETL) TYPE CM 60C 4PR 24AWG NNNNNN M

    • XXXXXX indicates manufacturer’s UL or ETL file number
    •  NNNNNN indicates the meter count
    Packing

    305Met pull box package, box dimension: 395*239*394 mm

    DOWNLOAD

    Click to view - Product Data Sheet
