OVERVIEW

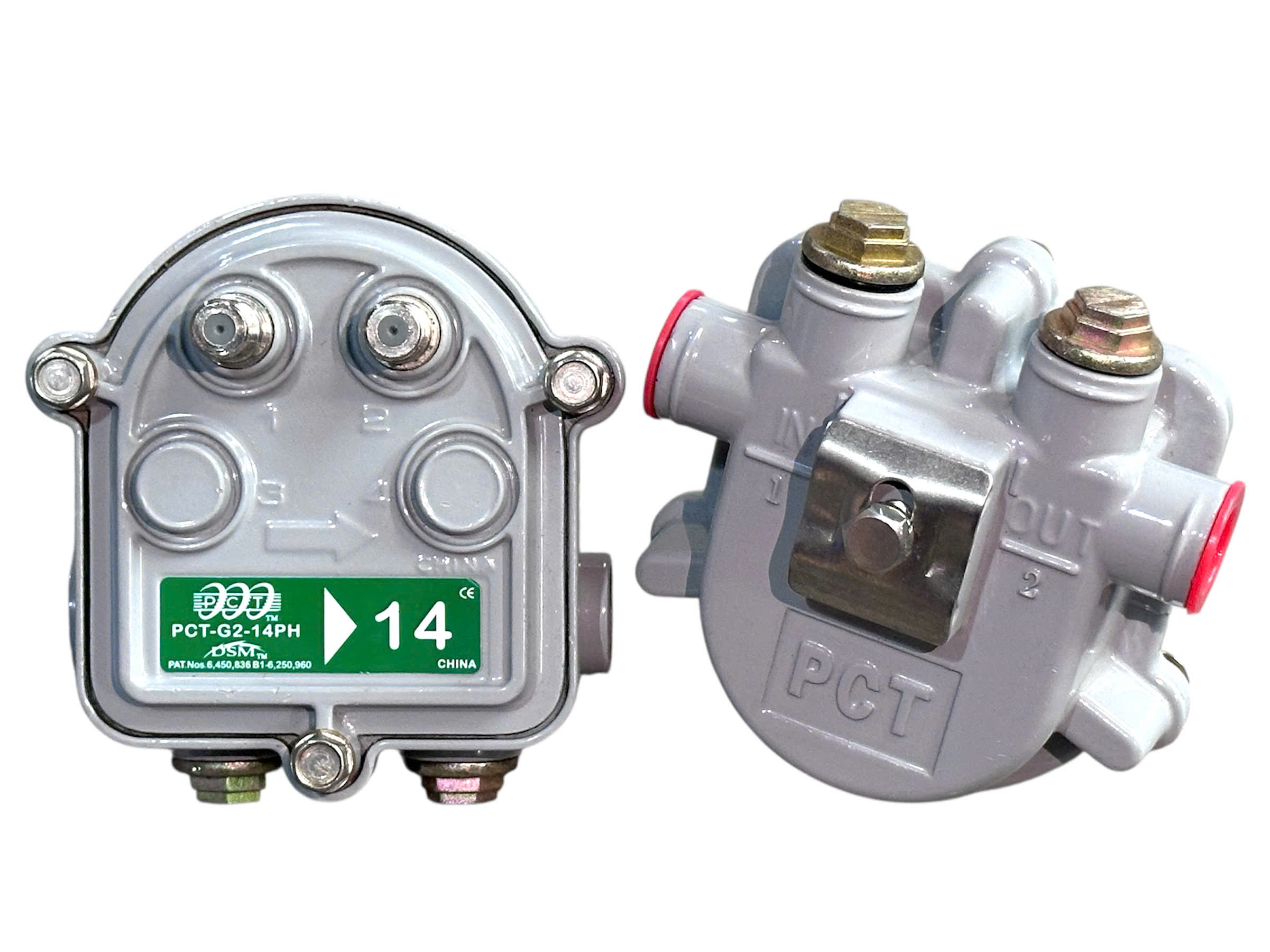

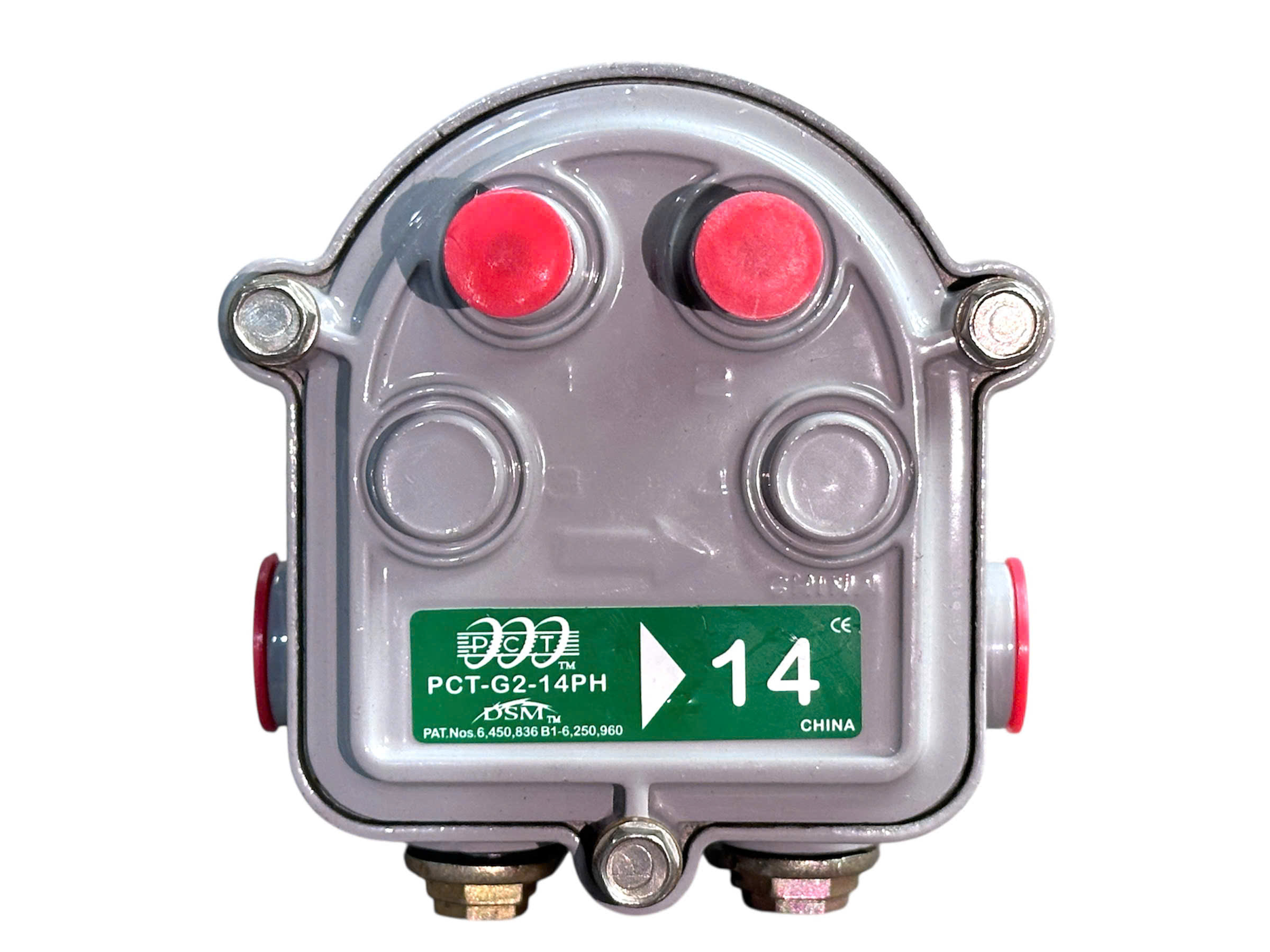

PCT’s Outdoor Taps are designed for high-performance broadband distribution in outdoor environments. Available in Traditional and Classic series, with 2-Way, 4-Way, and 8-Way configurations, these taps support 1 GHz bandwidth and 12A power passing. Models are available in both standard and wide-body options to accommodate different installation needs. Their feature rugged die-cast housings, superior shielding, and long-lasting weather resistance—ideal for cable TV, data, and RF systems.
SPECIFICATIONS
Feature Details Nominal Impedance 75 Ohms Power Passing 12 amps, 90 V AC through "IN" and "OUT" port High Voltage Blocking Capacitors All ports Surge Withstand All tap ports at IEEE C62.41-1991 Category A3
(0.5 ms - 100 kHz Ring Wave, 6000 V, 200 Amp)
Input / Output ports at IEEE C62.41-1991 Category B3
(1.2/50 ms - 8/20 ms Combination Wave, 6000 V, 3000 Amp)Waterproof Condition 15 psi (1.0 kg/cm2) Compression Mechanism Compression type (specialized tool required) Insertion Loss IN-OUT at 0.5 dB maximum Return Loss IN-OUT at 15 dB maximum DOWNLOAD
Click to view - Product Data Sheet
