OVERVIEW

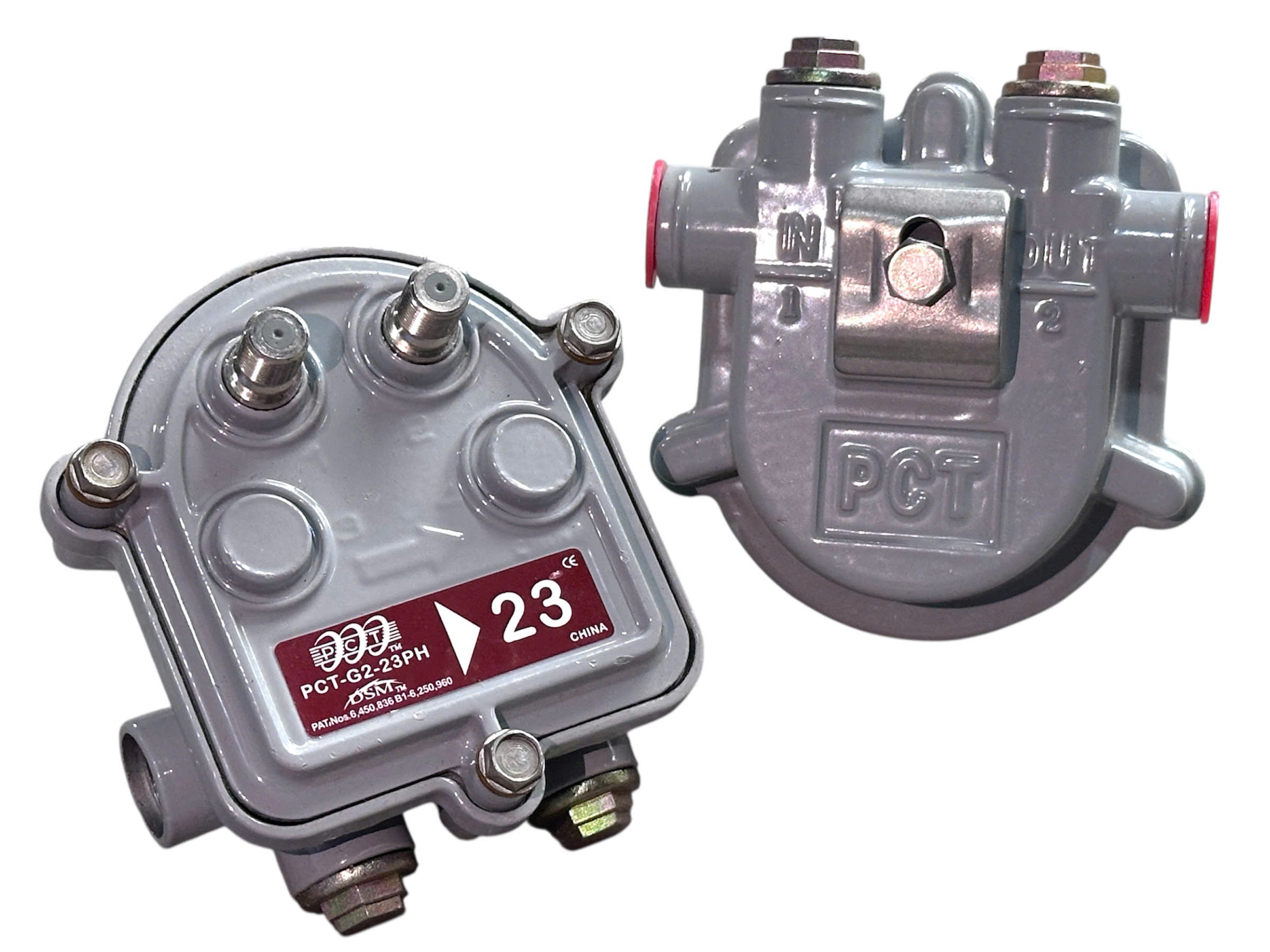

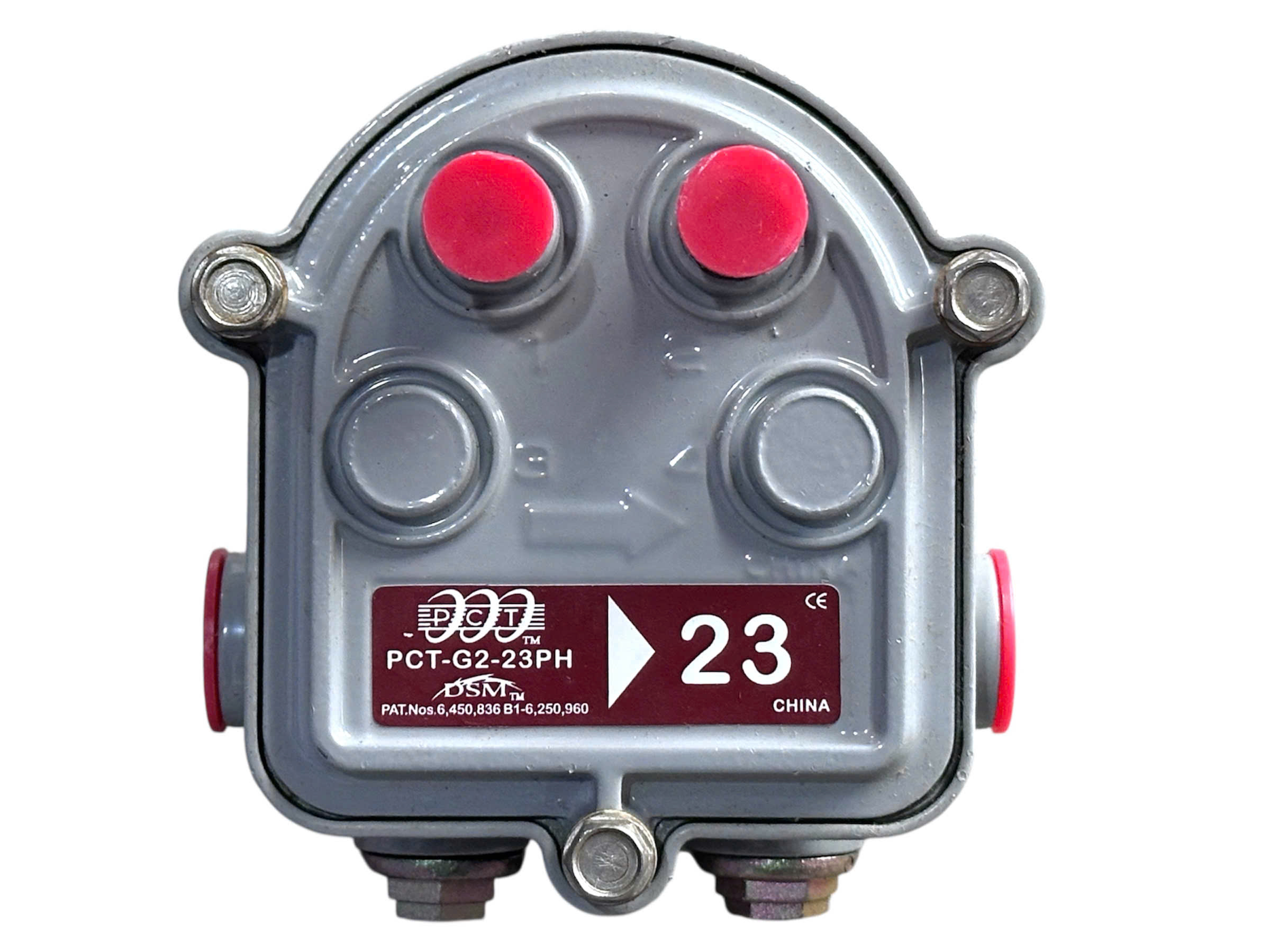

PCT’s Outdoor Taps are designed for high-performance broadband distribution in outdoor environments. Available in Traditional and Classic series, with 2-Way, 4-Way, and 8-Way configurations, these taps support 1 GHz bandwidth and 12A power passing. Models are available in both standard and wide-body options to accommodate different installation needs. Their feature rugged die-cast housings, superior shielding, and long-lasting weather resistance—ideal for cable TV, data, and RF systems.
SPECIFICATIONS
| Feature |
Details |
| Nominal Impedance |
75 Ohms |
| Power Passing |
12 amps, 90 V AC through "IN" and "OUT" port |
| High Voltage Blocking Capacitors |
All ports |
| Surge Withstand |
All tap ports at IEEE C62.41-1991 Category A3 (0.5 ms - 100 kHz Ring Wave, 6000 V, 200 Amp) Input / Output ports at IEEE C62.41-1991 Category B3 (1.2/50 ms - 8/20 ms Combination Wave, 6000 V, 3000 Amp) |
| Waterproof Condition |
15 psi (1.0 kg/cm2) |
| Compression Mechanism |
Compression type (specialized tool required) |
| Insertion Loss |
IN-OUT at 0.5 dB maximum |
| Return Loss |
IN-OUT at 15 dB maximum |
DOWNLOAD
Click to view - Product Data Sheet
