OVERVIEW

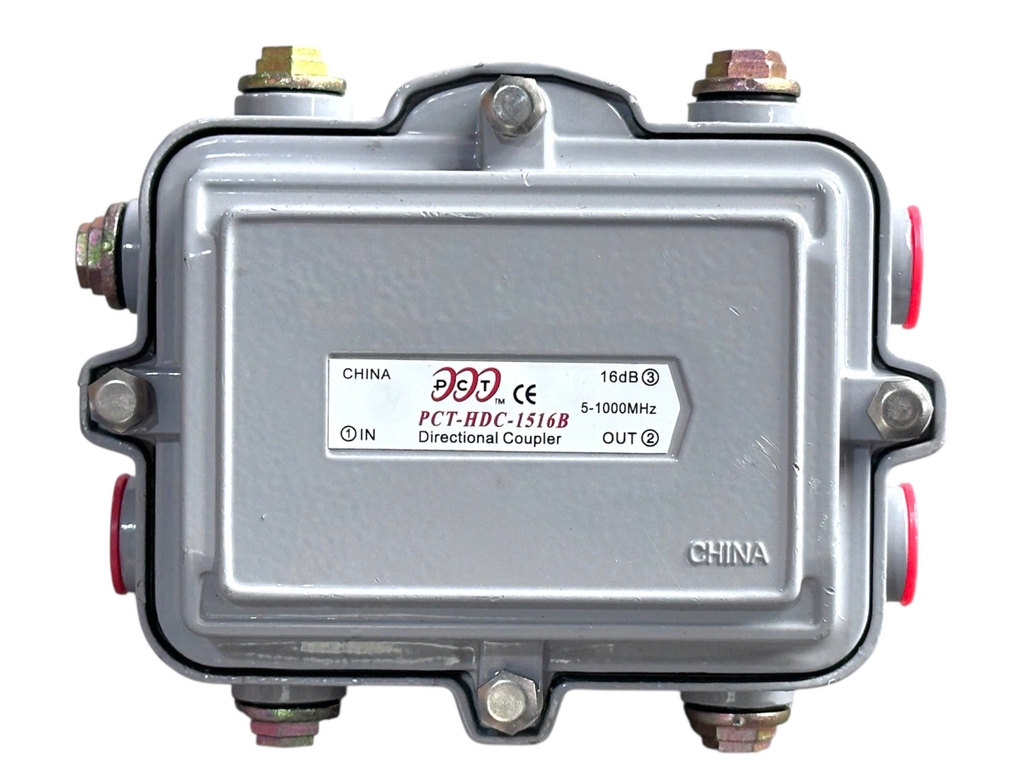

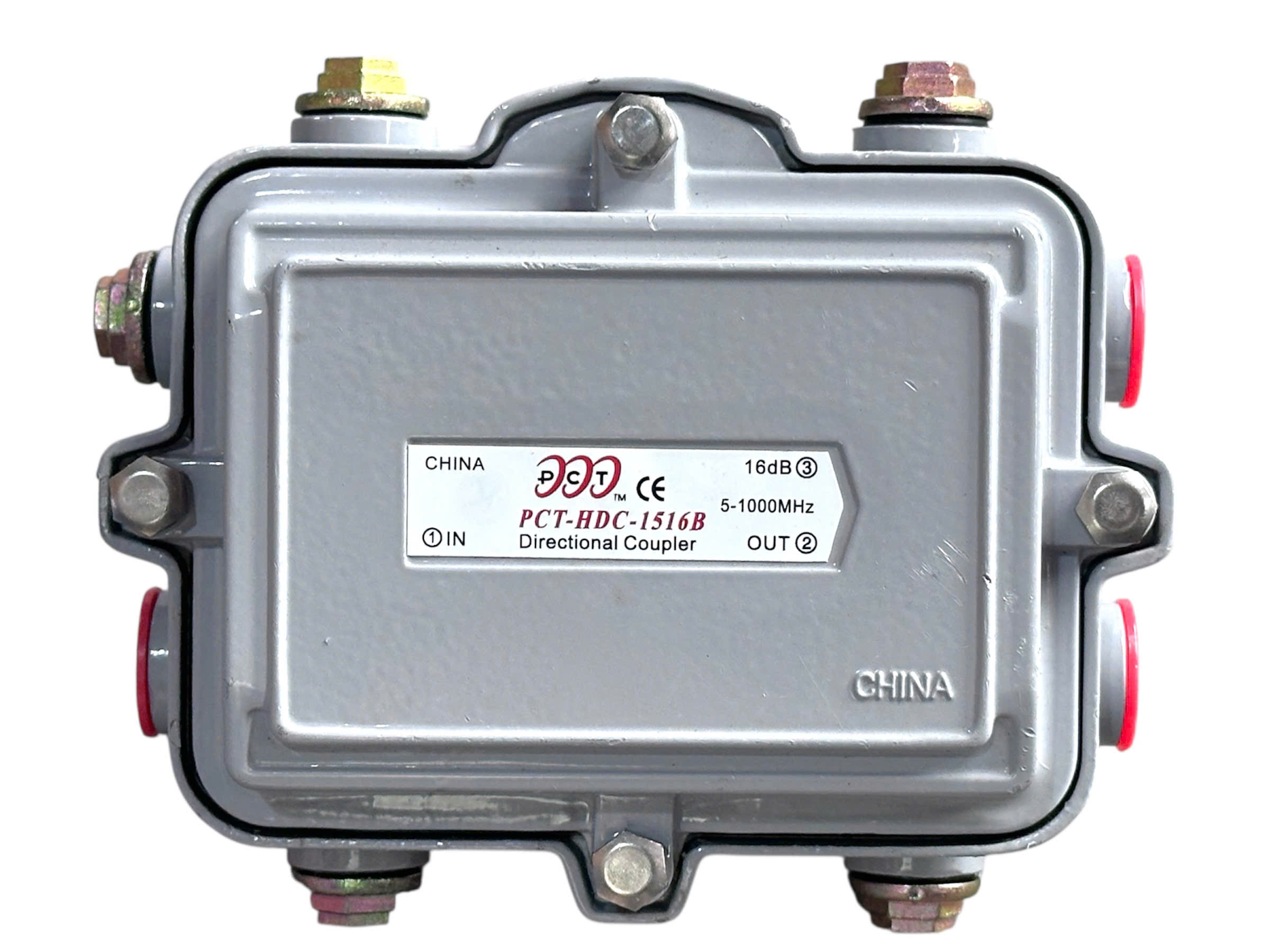

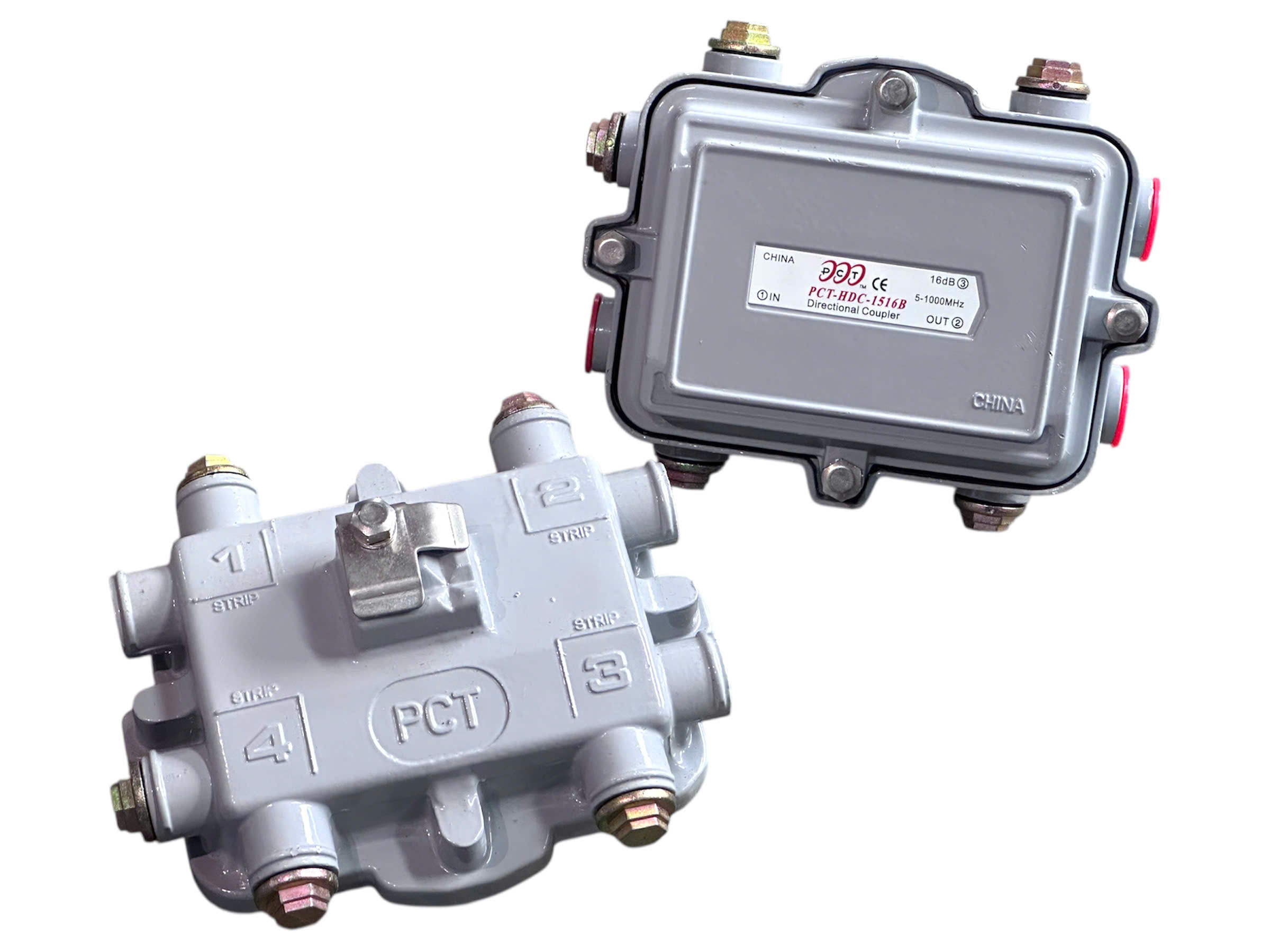

Reliable, weatherproof components designed for modern broadband and HFC networks. Explore our range of outdoor power inserters, directional couplers, and splitters with exceptional performance up to 1 GHz or 1.2 GHz.
SPECIFICATIONS
Feature Details Nominal Impedance 75 Ohms Power Passing Line Power Inserter: 20 A, 90 VAC (In-Out)
Directional Couplers: 15 A, 90 VAC (In-Out)
Splitters: 15 A, 90 VAC (In-Out)Waterproof Condition 15 psi Surge Withstand All ports conforms to ANSI / SCTE 81 2012,
IEEE C62.41-1991 Cat. B3 (6000 V, 3000 A,
1.2 / 50 μs to 8/20 μs Combination Wave)Hum Modulation -60 dB @ 10 A / 65 VAC Connector Thread (all ports) 5 / 8-24 UNEF-2B female with red plastic cap RFI Shielding -100 dB Temperature +20 °C, +60 °C and -40 °C; allow 10%
change in performance at +60 °C and -40 °CRegulatory Compliance CE, RoHS DOWNLOAD
Click to view - Product Data Sheet
