OVERVIEW

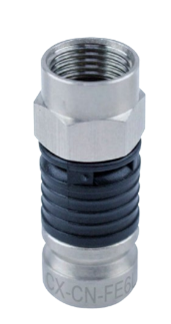

CXCNFE6L is delivers ultimate performance with cost efficiency. Featuring torque retaining and continuous ground design with a 21mm compression length, this compact F-type RG-6 connector ensures clean contact, reduced return loss, and reliable AV signal transmission—perfect for professional and residential installs demanding durability and signal integrity
SPECIFICATIONS
| Feature |
Details |
| Connector Type |
FRS Compression Connector |
| Cable Compatibility |
Series 6 Cable (RG6), supports 60% through Tri-Shield or Quad-Shield cable types |
| Impedance |
75 Ohms |
| Construction Material |
100% Brass construction (body, post, nut), corrosion-resistant plating |
| Compression Mechanism |
Patented Metal Compression Ring technology that locks polymer sleeve in place and prevents loosening |
| Weather Protection |
Dual O-Ring design, UV stabilized polymer sleeve for moisture and UV resistance |
| Application Use |
High-performance broadband, CATV, satellite, DOCSIS 3.1-4.0 systems; tested for harsh environmental conditions |
DOWNLOAD
Click to view - Product Data Sheet
