Description
OVERVIEW

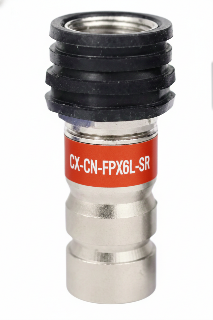

CXCNFPX6LSR is a universal Series 6 compression connector with a 21mm stroke length for maximum shielding and grip. Designed for long cable runs or high-vibration environments, it ensures a secure, torque-retaining fit with continuous ground protection. This connector is available in two versions: with seal ring for added weather protection and without seal ring for standard indoor use. Its extended body, dual O-rings, and all-metal brass construction make it the professional’s choice for rugged, reliable installs
SPECIFICATIONS
Feature Details Connector Type TRS Compression Connector Gender Male (F-type) Cable Compatibility RG6 cable (single tape and braid through quad-shield) Impedance 75 Ohms (Nominal) Construction Material all Metal Design, 100% brass construction, Nickel plated brass Compression Mechanism Dual metal compression rings with torque retaining lock washer Weather Protection Dual O-ring moisture seals; all-metal design provides superior weatherproofing Tool Compatibility CX-AC-AOC, CX-AC-UCTX-11 and other standard 21 mm compression tools Application Use High-performance broadband, CATV, satellite, DOCSIS 3.1–4.0 systems; tested for harsh environmental conditions — certified to SCTE, ASTM, and Telcordia standards Seal Ring High Quality UV Stabilized EPDM Rubber DOWNLOAD
Click to view - Product Data Sheet
