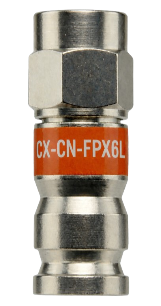

CXCNFPX6L- Series 6 Premium Compression Connector, Torque Retaining, 21mm

Status: In stock | SKU: CX-CN-FPX6L

$0.38

Universal TRS Extra-long Compression Connector, Torque Retaining, Continuous Ground, Series 6, 21mm (with or without Sealring)

Description

OVERVIEW

CXCNFPX6L is a universal Series 6 compression connector with a 21mm stroke length for maximum shielding and grip. Designed for long cable runs or high-vibration environments, it ensures a secure, torque-retaining fit with continuous ground protection. This connector is available in two versions: with seal ring for added weather protection and without seal ring for standard indoor use. Its extended body, dual O-rings, and all-metal brass construction make it the professional’s choice for rugged, reliable installs

SPECIFICATIONS

Feature	Details
Connector Type	TRS Compression Connector
Gender	Male (F-type)
Cable Compatibility	RG6 cable (single tape and braid through quad-shield)
Impedance	75 Ohms (Nominal)
Construction Material	all Metal Design, 100% brass construction, Nickel plated brass
Compression Mechanism	Dual metal compression rings with torque retaining lock washer
Weather Protection	Dual O-ring moisture seals; all-metal design provides superior weatherproofing
Tool Compatibility	CX-AC-AOC, CX-AC-UCTX-11 and other standard 21 mm compression tools
Application Use	High-performance broadband, CATV, satellite, DOCSIS 3.1–4.0 systems; tested for harsh environmental conditions — certified to SCTE, ASTM, and Telcordia standards
